Vibrocompaction is a ground improvement technique using a vibratory probe to compact loose soil or fill.

Presentation and key elements

What is it?

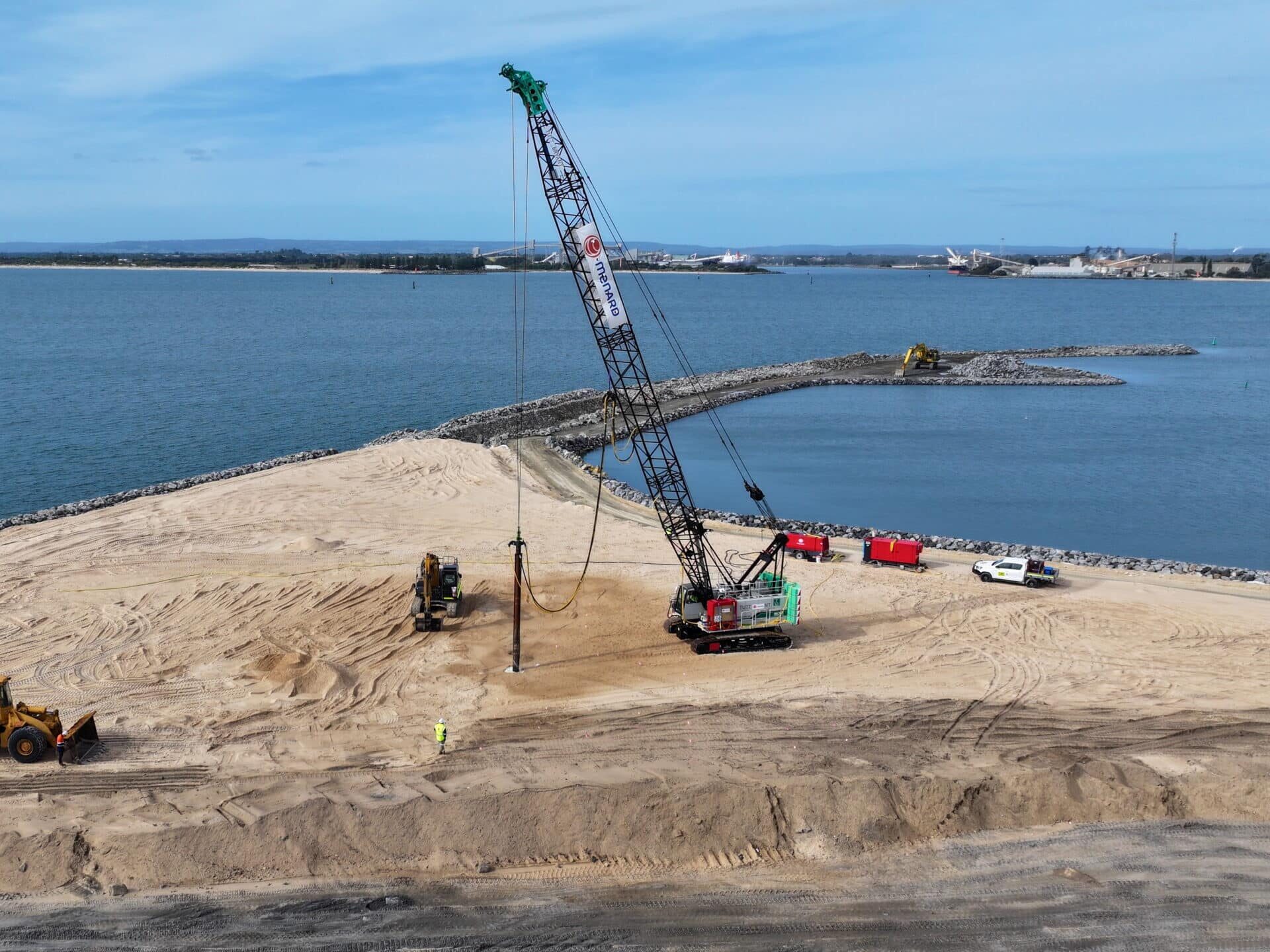

Vibrocompaction is executed using a vibratory probe. Under the effect of its weight, the jetted water, and the sustained horizontal vibrations, the vibratory probe rapidly reaches the desired depth. The probe is then gradually lifted in successive steps, producing a cylinder of compacted ground that is 2 to 4.5 meters in diameter.

When and why use it?

Loose soil or fill can be compacted at depth through the insertion of vibratory probes with large volumes of water to generate localised liquefaction of the soil. This enables the particles to rearrange themselves in a denser formation and thus increases the overall density of the soil. It is used to control and reduce settlement, mitigate liquefaction, stabilize or treat hydraulic fill and limit lateral earth pressure behind quay walls.

💡 Menard’s tip

Vibrocompaction generally generates settlement amounting to 7 to 10% of the thickness of the soil treated.
